Description

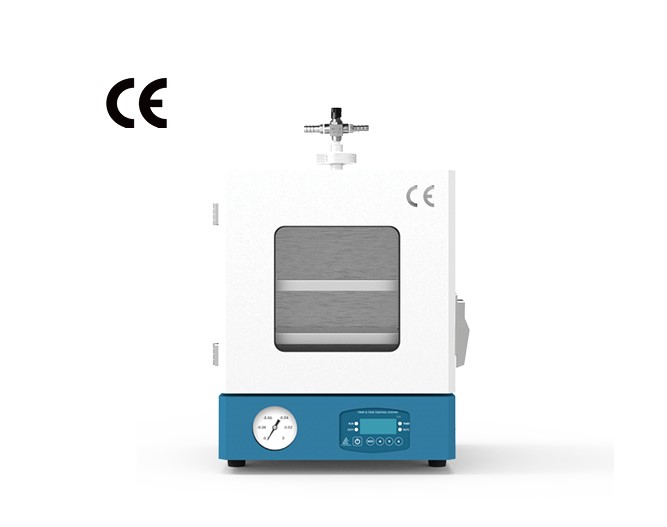

Vacuum Drying Oven
-Feature
A Vacuum Drying Oven is used for drying at low temperatures by lowering the pressure. In addition, this unit dries samples without causing residues, scaling, or oxidation. Thus, this equipment widely used in laboratories and other related industries.
– View window with spring mounted shatter proof safety glass panel
– RS-485 or RS-232C interface
– Digital PID controller
– Stainless steel & Door sealing gasket
– Steel plate with powder heating coated
– Leveling feet / caster
– Safety devices
| Specification | |
| Model | SH-VDO-08NG |
| Temp Range | Ambient +5℃ to 250℃ (Ambient +9℉ to 482℉) |
| Time Range | 00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer |
| Vacuum Resistance | 0 to 76 cmHg (0 to 0.1MPa) |
| Heating Type | Hot Air Jacketed |
| Temp & Time Controller | Microprocess PID Membrane Touch Digital Controller |
| LED Lamp | N/A |
| Heater Capa | 800 W |
| Dimension Internal (W×D×H) | 200×200×200mm (7.87×7.87×7.87”) |
| Dimension External (W×D×H) | 385×315×555mm (15.15×12.40×21.85”) |
| Weight | 29 kg |
| Capa | 8 L |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Material Packing | Silicon Rubber Packing |
| View Window | Tempered Glass |
| Aluminium Shelves | 2 Supplied (2 Maximum) |
| Electrical Requirement | 3.5 A |
