Description
Typical Applications:
●Ideal for generating the three-dimensional motion commonly preferred for molecular biology applications.
Features:

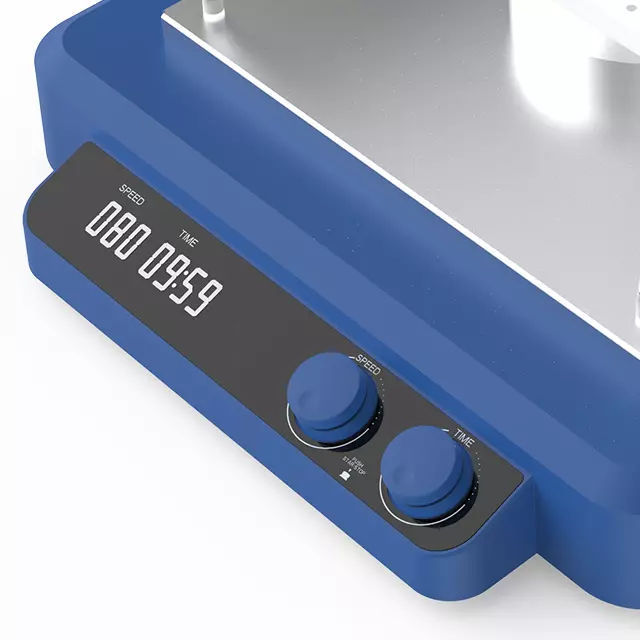

●LED display for easy-reading of speed and time simultaneously
● Continuous operation and timed operation in range of 0-99h59min are available
● Undulating three-dimensional shaking motion, with 0°-8° adjustable tilt angle
●Adjustable speed of 10–70rpm
● Max. Load capacity (with platform) is 5KG
●No-slip mat on the platform keeps the items in position during operation
●Ideal for generating the three-dimensional motion commonly preferred for molecular biology applications.
| Attribute | Value |
|---|---|
| Model | SK420 |
| Shaking motion | Three-dimensional shaking |
| Tilt angle [°] | 0-8° |
| Max. load capacity (with platform) [kg] | 5 |
| Motor type | Brushless DC motor |
| Speed range [rpm] | 10-70 |
| Speed display | LED |
| Time display | LED |
| Time range [min] | 0-99H59min |
| Operation type | Continuous / timing operation |
| Voltage [VAC] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 35 |
| Permissible ambient temperature [℃] | 0-40 |
| Permissible relative humidity [RH] | 80% |
| Protection class acc. to DIN EN60529 | IP21 |
| Dimension (L x W x H) [mm] | 452*407*225mm |
| Weight [kg] | 9 |
