Description
Typical Applications:
● Widely used in medical, biological engineering, chemistry, bio-pharmaceuticals, food and other research fields. It is a necessary instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory
Features:

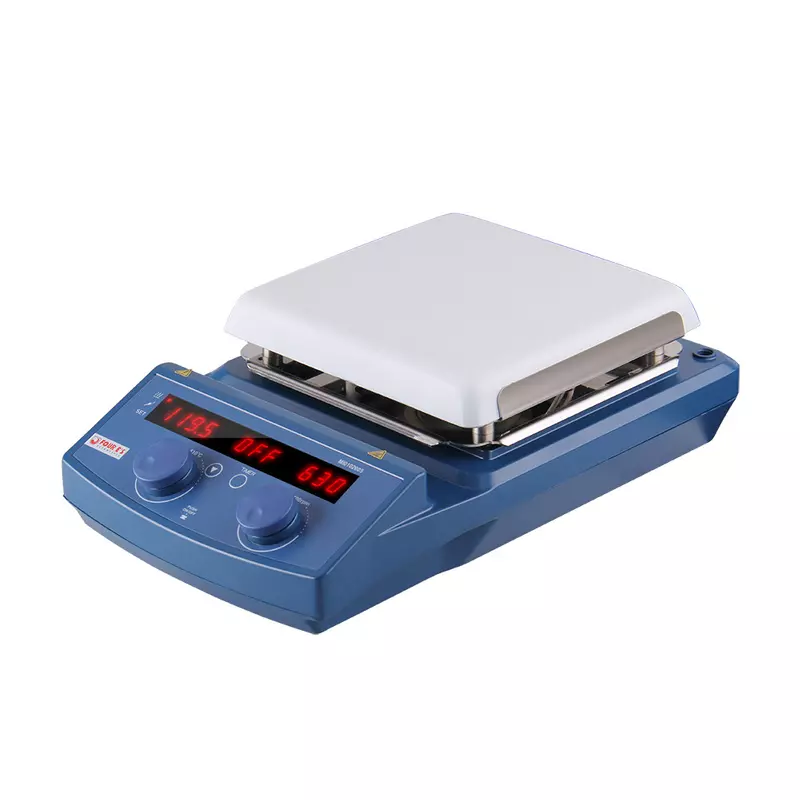

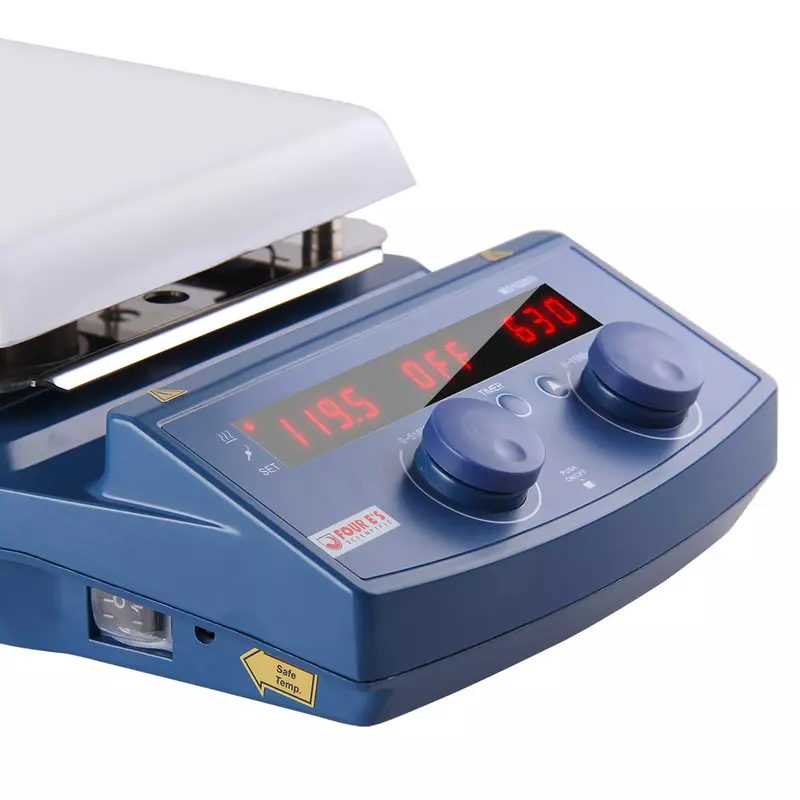

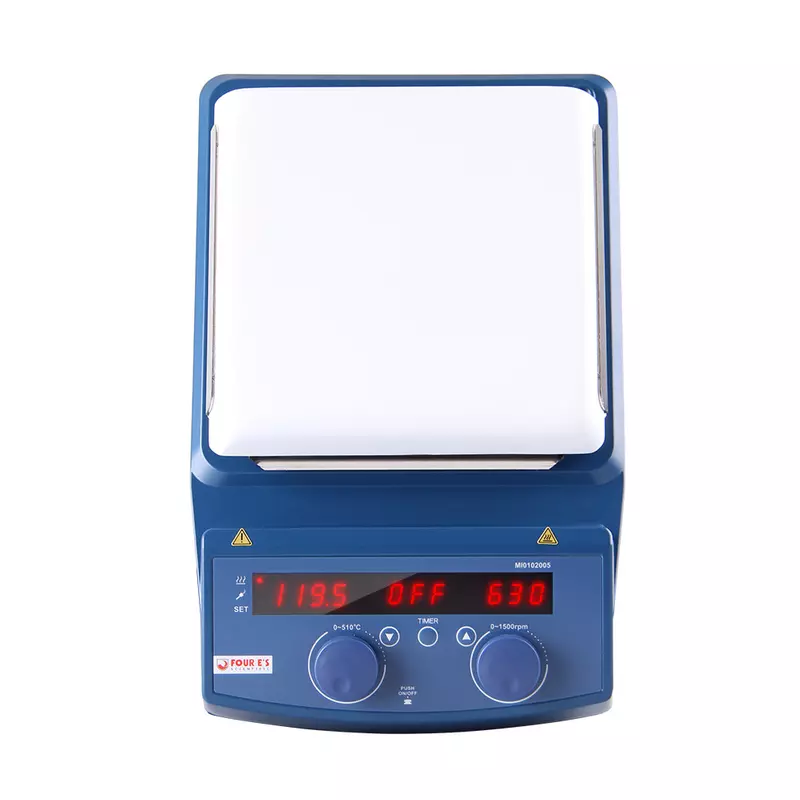

● LED digital displays the target and actual speed and temperature
● Independent digital wheels adjust the speed and temperature
● Temperature is up to 510°C and the safety temperature is 50-550°C
● PID controller provides rapid heating and ensures long-time continuous operation
● Stainless steel with ceramic coated heating plate can be resistant to high temperature, impact, and thermal shock
● Fully enclosed alloy casing provides high temperature resistance, excellent heat dissipation and its baking finish enhances the chemical resistance.
● Powerful stirring performance supports large stirring quantities up to 20L (H2O) and ensures a stable running of 5L (H2O) with the Φ8.5*50mm stirring bar at the max. speed of 1500rpm
● Double over-temperature protection by the hardware and software provides high safety and reliability
● Hot surface warning at 50°C to prevent burns
● Digital process timer allows for unsupervised operation and can be set from 0 to 99h59m
● The external temperature sensor PT1000 enables precise control accuracy of ±1°C
7 Inch LED Digital Magnetic Hotplate Stirrer,LED Digital Magnetic Hotplate Stirrer manufacturer,wholesale LED Digital Magnetic Hotplate Stirrer
| Attribute | Value |
|---|---|
| Model | MI0102005 |
| Stirring positions | 1 |
| Set-up plate dimensions [mm] | 185 x 185 |
| Set-up plate material | Stainless steel with ceramic coated |
| Motor type | Brushless DC motor |
| Max. stirring quantity (H₂O) [L] | 20 |
| Max. stirring bar [L x Φ, mm] | 80 x Φ9.5 |
| Motor rating output [W] | 15 |
| Speed range [rpm] | 50-1500 |
| Speed display | LED |
| Heating output [W] | 1000 |
| Heating temperature range [°C] | Room temp.-510 |
| Temperature display | LED |
| Temperature display resolution [°C] | 0.1 |
| Safety temperature [°C] | 50-550 |
| External temperature sensor | PT1000 |
| Temperature control accuracy with external temperature sensor | ±1 |
| Temperature control accuracy with internal temperature sensor | ±1 (<100°C), 1% (≥100°C) |
| Hot surface warning | 50°C |
| Time display | LED |
| Time range | 0-99h59m |
| Dimensions [W x D x H, mm] | 220 x 350 x 100 |
| Protection class according to DIN EN60529 | IP42 |
| Permissible ambient temperature [°C] | 5 – 40 |
| Permissible relative humidity | 80% |
| Voltage [VAC] | 200-240/100-120 |
| Frequency [Hz] | 50/60 |
| Power [W] | 1050 |
