Cold light sources with brightness control

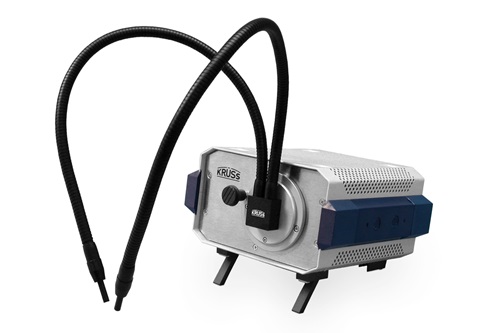

The KL5120 model has a steplessly variable light intensity without color change with a long-life halogen reflector. This cold light source offers excellent transmission of white light while maintaining the color range. This makes the KL5120 ideal for microscopic reflected light illumination or for use in microscope photography where no color changes are desired.The large cold light source KL5125 has a particularly powerful 150 watt illumination and is mainly used in the biological-pharmaceutical sector. It allows the intensity to be regulated at a color temperature of 3,350 K.Gooseneck light guides with one or two arms are available for operating the cold light sources.
Technical data
TABLE
| Specification | KL5120 model | KL5125 Model |
|---|---|---|
| Color temperature | 3050 K | 3350 K |
| Illumination | Halogen reflector 8 V, 20 W, adjustable | Halogen reflector 15V, 150W, adjustable |
| Note | Gooseneck light guides must be purchased separately | |
| Dimensions (WxHxD) | 200 x 120 x 190 mm | 265 x 170 x 245 mm |
| Weight | 3.5 kg | 4.5 kg |
| Mains adaptor | 100-240 V | |
| Operating voltage | 7.5 V | 230 V |
| Power consumption | 20 W | 150 W |
| Rated frequency | 50/60 Hz | |
Diffuser lens
Diffuser lens for Gooseneck light guide to widen light beam, with frosted glass pane
Gooseneck light guide one-armed
1-arm gooseneck light guide for cold light sources, length 500 mm
Gooseneck light guide two armed
2-arm gooseneck light guide for cold light sources, length 500 mm
