Benchtop NMR Spectrometers
Nuclear Magnetic Resonance (NMR) Spectrometers from Oxford Instruments
Asia Mattelab is the sole distributor in Singapore for Oxford Instruments Magnetic Resonance benchtop NMR spectroscopy solutions.
X-Pulse Benchtop NMR spectrometer
X-Pulse is a revolution in the flexibility of 60 MHz benchtop NMR spectroscopy. A unique modular design combines fully tuneable broadband X-nuclei capability, flow chemistry, sample automation, reaction monitoring and variable temperature with superior spectral resolution. X-Pulse provides the widest range of NMR chemical analysis for research, development, quality control and teaching on the bench in your lab.
X-Pulse 90 Benchtop NMR spectrometer
X-Pulse 90 is a revolutionary new benchtop nuclear magnetic resonance (NMR) spectrometer that brings broadband NMR to the benchtop at 90 MHz for the first time. X-Pulse 90 is the ideal instrument for flexible chemical analysis, across a wide variety of applications, as it enables investigation of the largest number of nuclei without compromising performance.
X-Auto is a 25 position NMR automatic sample changer designed to maximise the efficiency of your benchtop NMR. Save time and maximise throughput by automating data acquisition across many samples and NMR active nuclei.

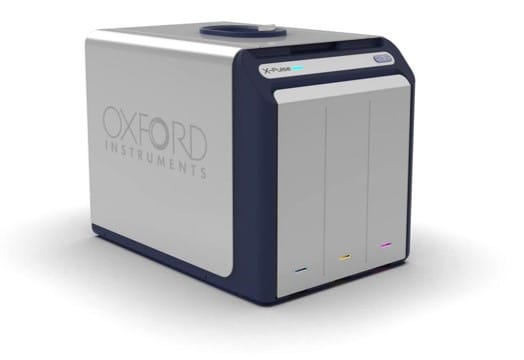

X-Pulse
X-Pulse benchtop NMR spectrometer
The X-Pulse benchtop NMR spectrometer identifies structure, characterises reaction dynamics and measures physical and chemical properties of molecules, compounds and mixtures. Easily positioned in a lab without needing any liquid cryogens, X-Pulse with its high homogeneity permanent magnet has exceptional temperature stability.
X-Pulse operates with standard 5mm NMR tubes, or our easy-to-use flow cell. The optional X-Auto sample changer maximises throughput and automates data acquisition for up to 25 samples.
New enhanced SpinFlow software makes routine experiments even simpler and adds more flexibility for advanced users.
For coherence selection, selective excitation and water and solvent suppression, comprehensive pulsed field gradients and shaped RF pulses are included as standard.

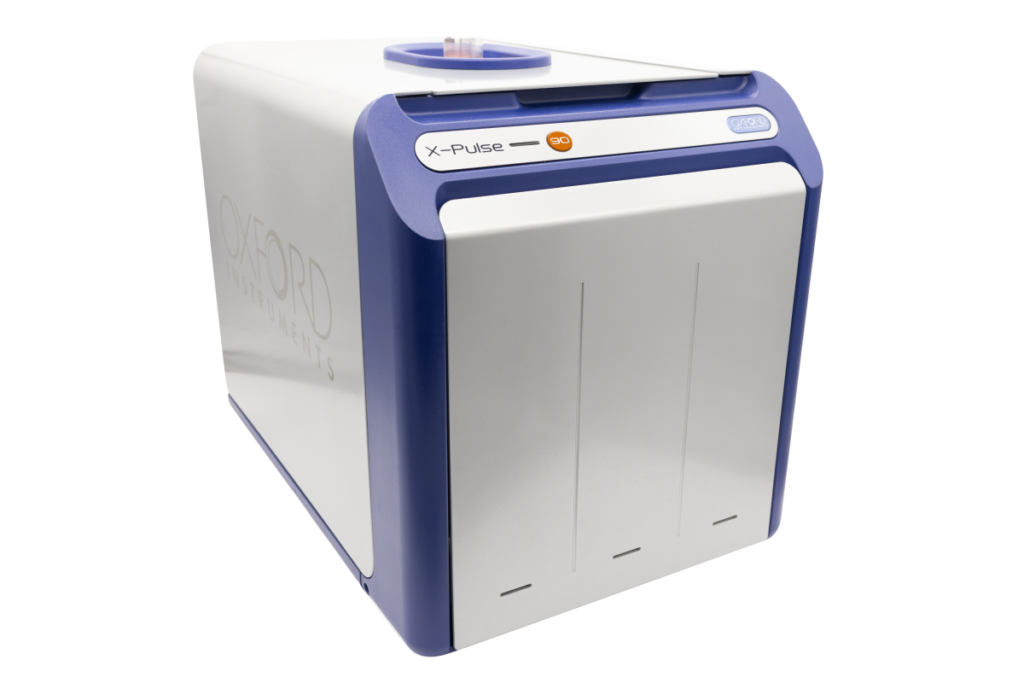

X-Pulse 90
X-Pulse 90 benchtop NMR spectrometer
X-Pulse 90 continues the X-Pulse ethos of modularity, versatility, and upgradeability, and as such can be tailored to your needs, for example, with a flow cell to monitor real-time reactions, or the addition of variable temperature capability. Additionally, the unique, user exchangeable probe enables the setup to be easily changed depending on the requirements (e.g. highest signal to noise (SNR) performance versus multiple nuclei), as well as ease of access for cleaning.
X-Pulse’s unique features that will benefit your workflow:
- Broadband capability enables the largest number of nuclei to be measured on a benchtop NMR spectrometer without compromising sensitivity
- A wide variable temperature range option of 0-60°C allowing users to thoroughly investigate reaction kinetics or characterise electrolyte properties
- The orientation of the diffusion gradient ensures accurate measurement, even in flow experiments
- User exchangeable probes mean no compromise between versatility and sensitivity
- User removeable probe ensures minimal machine downtime for breakages and spills

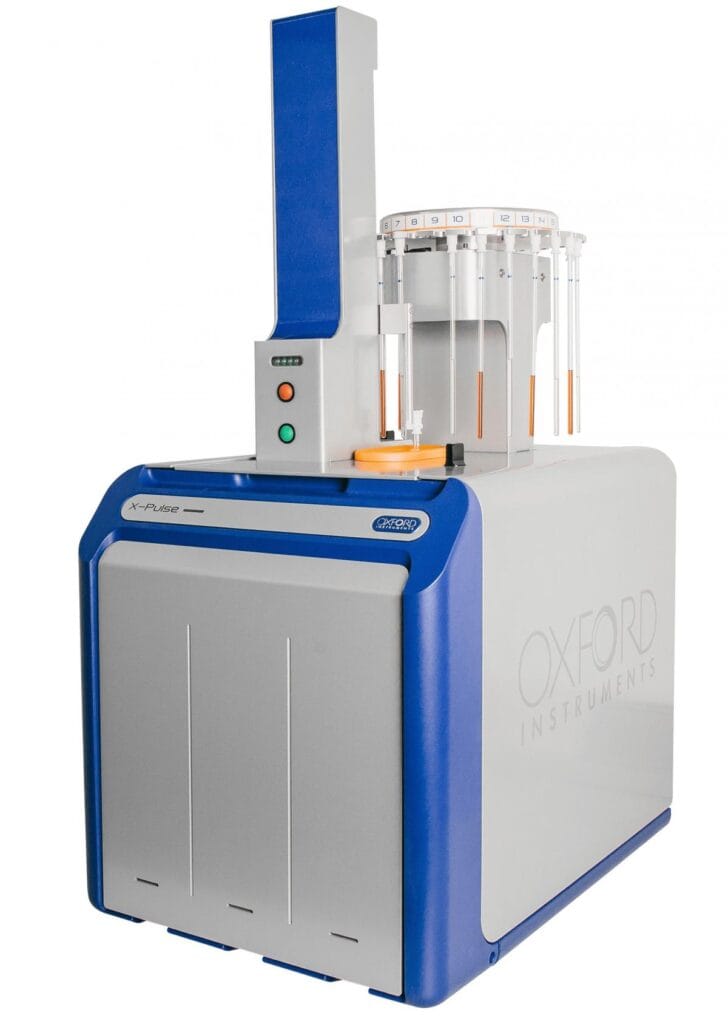

X-Auto
X-Auto autosampler
Work smarter, and more remotely by integrating the X-Auto NMR autosampler with your X-Pulse broadband benchtop NMR system:
- 25 positions for 5 mm diameter NMR tubes
- Use varying length (minimum 20 cm) or non standard tubes
- All controlled from within the SpinFlow software
- Easy to install
- Automatic sample detection to simplify loading and unloading
